Mini Angle Beam MAB Test Block 12.5MM Alloy Steel

Mini Angle Beam MAB Test Block 12.5MM Alloy Steel

Price: $0.00

Part Number : NDETECH-7242
Availability : In Stock

Share with your Colleagues

Description

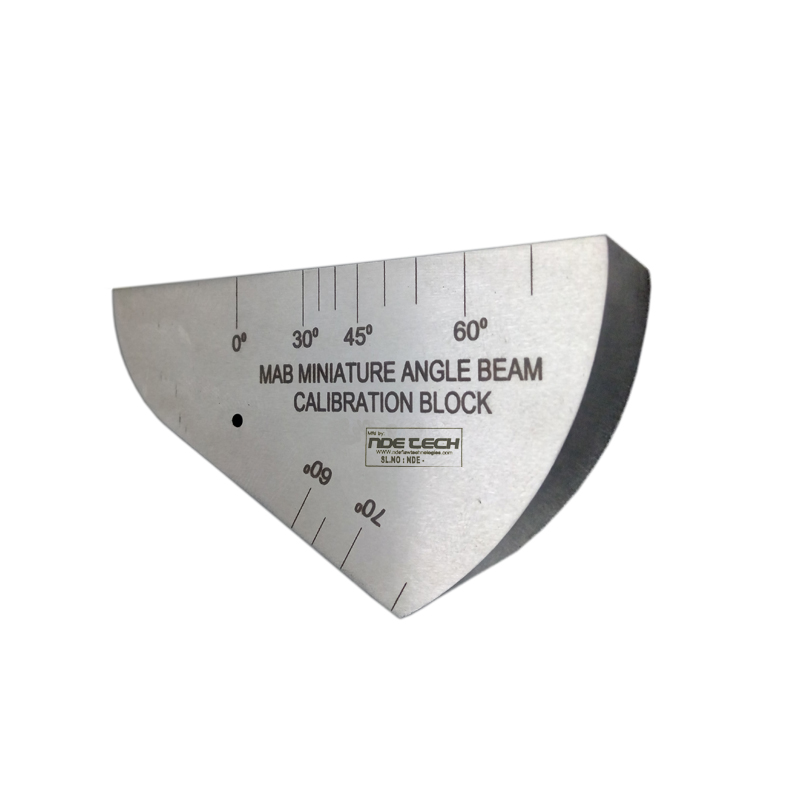

Mini Angle Beam MAB Test Block 12.5MM Alloy Steel

NDETECH METRIC miniature angle beam block is also known as a "Rompas" block or simply "Angle Beam". It is a substitute for the DSC block for distance, beam index, refracted angle and sensitivity calibration.
In accordance with a metric equivalent, based on ASTM E164 and U.S.

Geometry: 25 and 50 mm radius, and a 2 mm FBH at 6.25 mm metal travel distance (1/4T).

Dimensions: 12.5mm thick (Also available in 25mm thicknesses)

Material: Alloy Steel.

Note: Customized Material also available- Copper Nickel, Titanium, Magnesium, Inconel, Hastelloy, Duplex.
