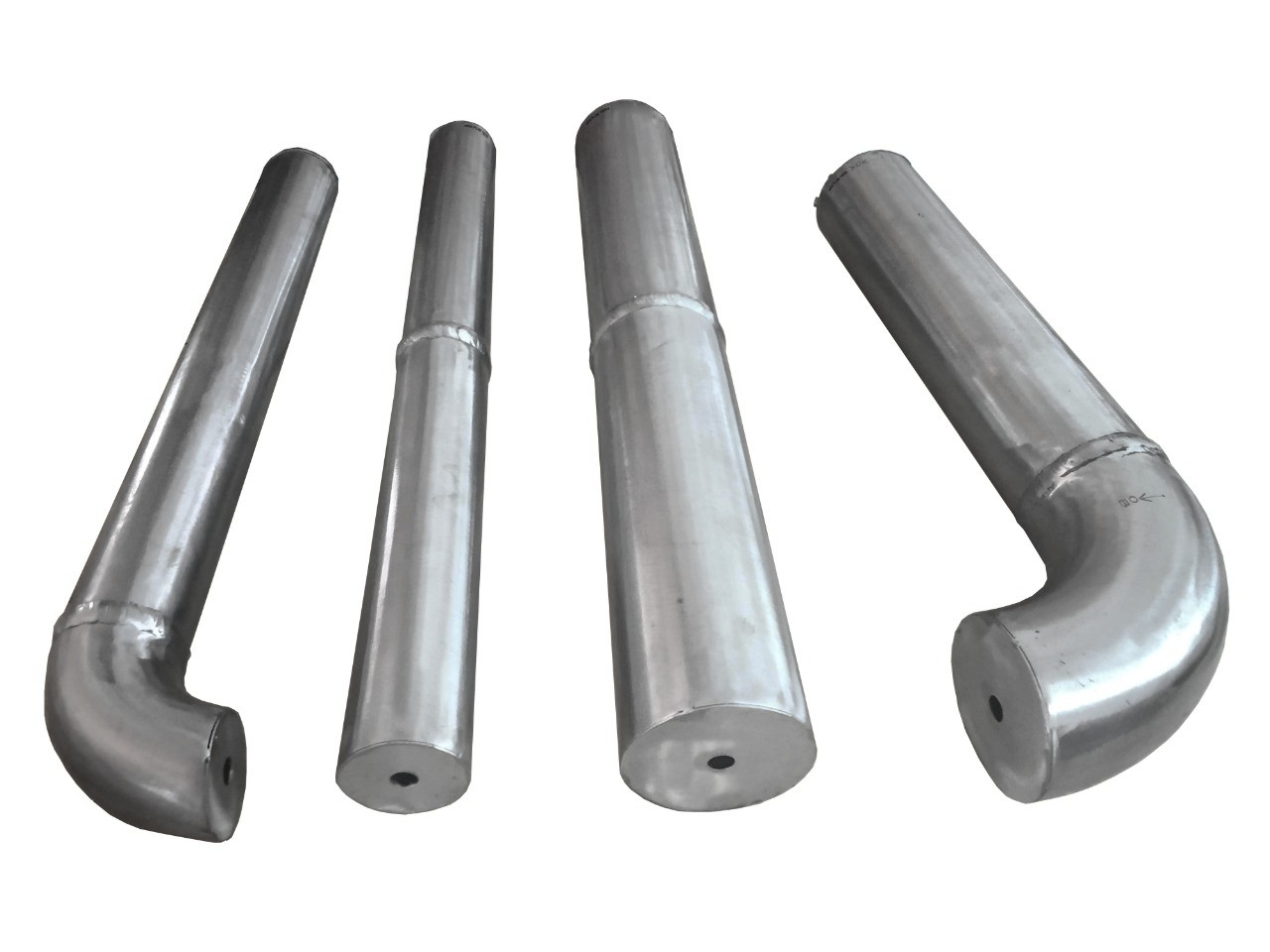

Borescope inspection training and Demonstration flaw kit

Pipe OD 1” Sch80 Pipe 2 Nos

90° Elbow OD 1.5” Sch80 Pipe and Long Radius 90° Elbow connected 8 Nos

Specifications: Each specimen will contain a minimum 2 to 4 ID connected flaws.

Combination of pre-service and post-service indications.

Each specimen will have the elbow end sealed with a 0.625” port to allow borescope access.

The pipe end will contain a removable plug for ease of viewing during training and access for larger diameter borescopes.

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheet, Measuring & borescope inspection Report

Qty: 1 Set of 10 Specimens,

Material: Carbon or Alloy Steel.

(Customized Calibration Test Block and Flaw Specimen also available. Contact- support@ndetech.org.in)
