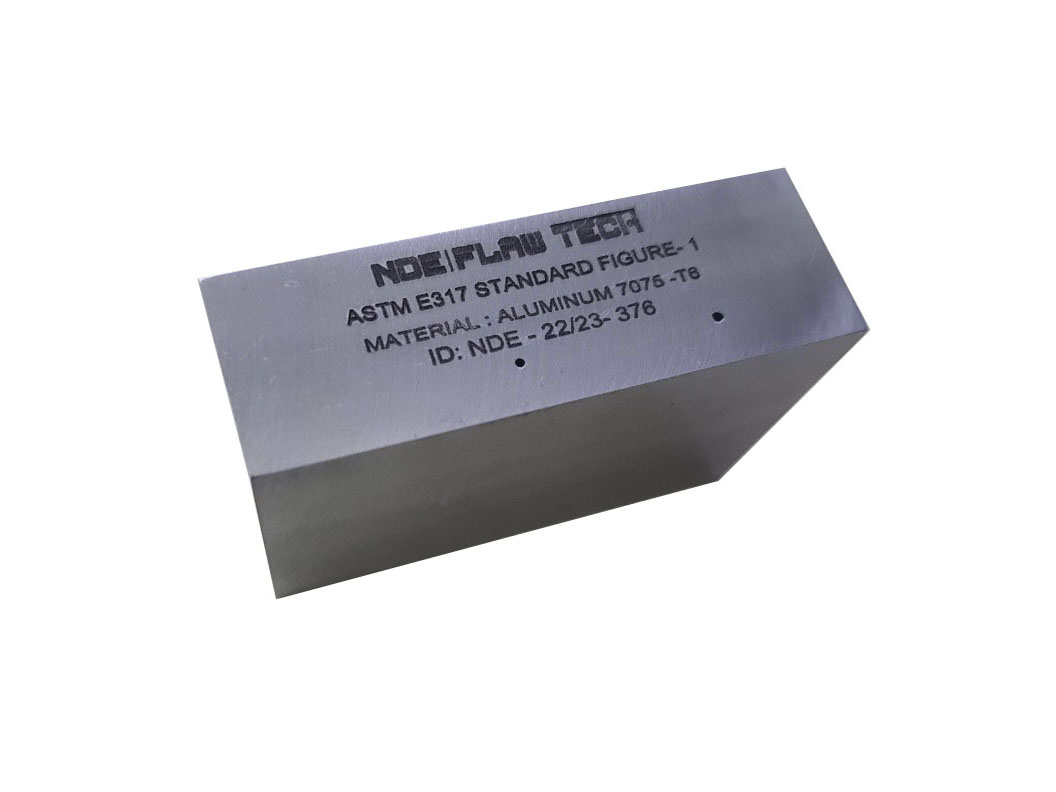

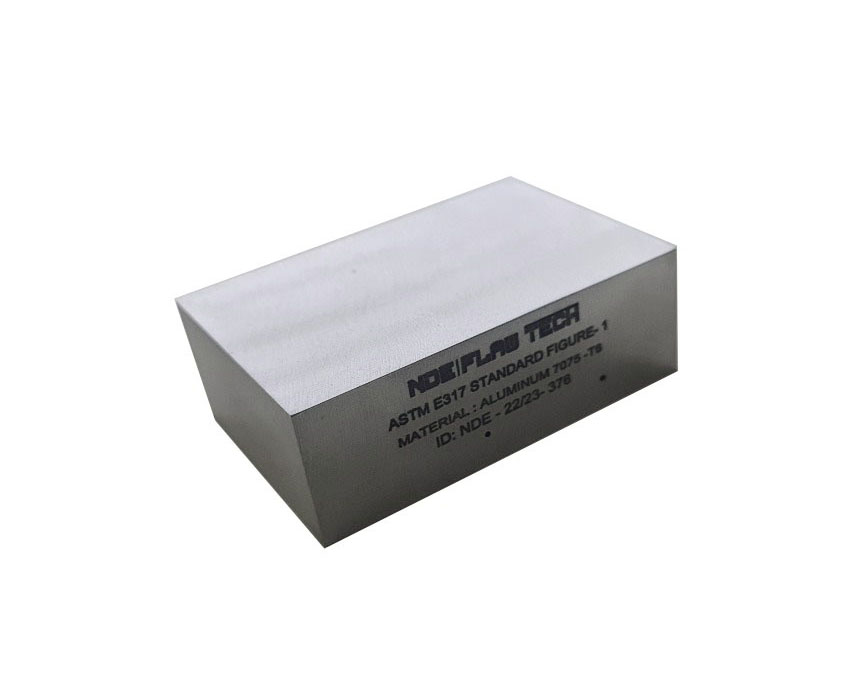

ASTM E317 Test Block Figure 1 (Metric Version) ALUMINUM 7075-T6
ASTM E317 horizontal and vertical linearity block, Figure 1 is used for evaluating the horizontal and vertical linearity characteristics of ultrasonic pulse-echo system. Satisfactory for mid-range frequencies and sweep settings on most instruments when the beam is directed through the thickness.
Geometry: Two Ø1.2mm diameter flat-bottom holes.
Dimensions: 75mm (L) x 25mm (T) x 50mm (W)
Material: ALUMINUM 7075-T6
We "NDE Flaw Technologies Private Limited from INDIA" commonly known as NDE FLAW TECH. The company was established in 2012 and incorporated in 2015, the company is working as per Indian government rules and regulations. .
