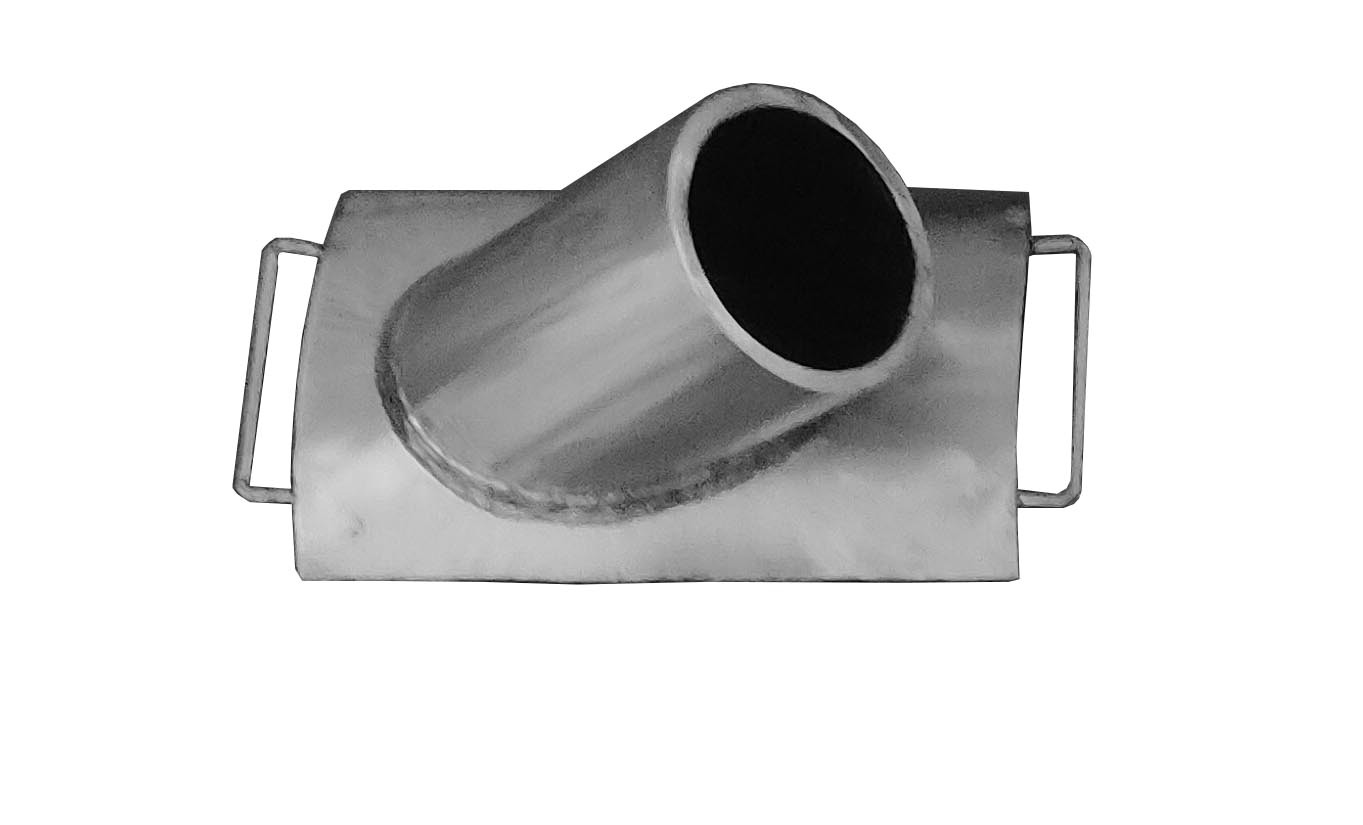

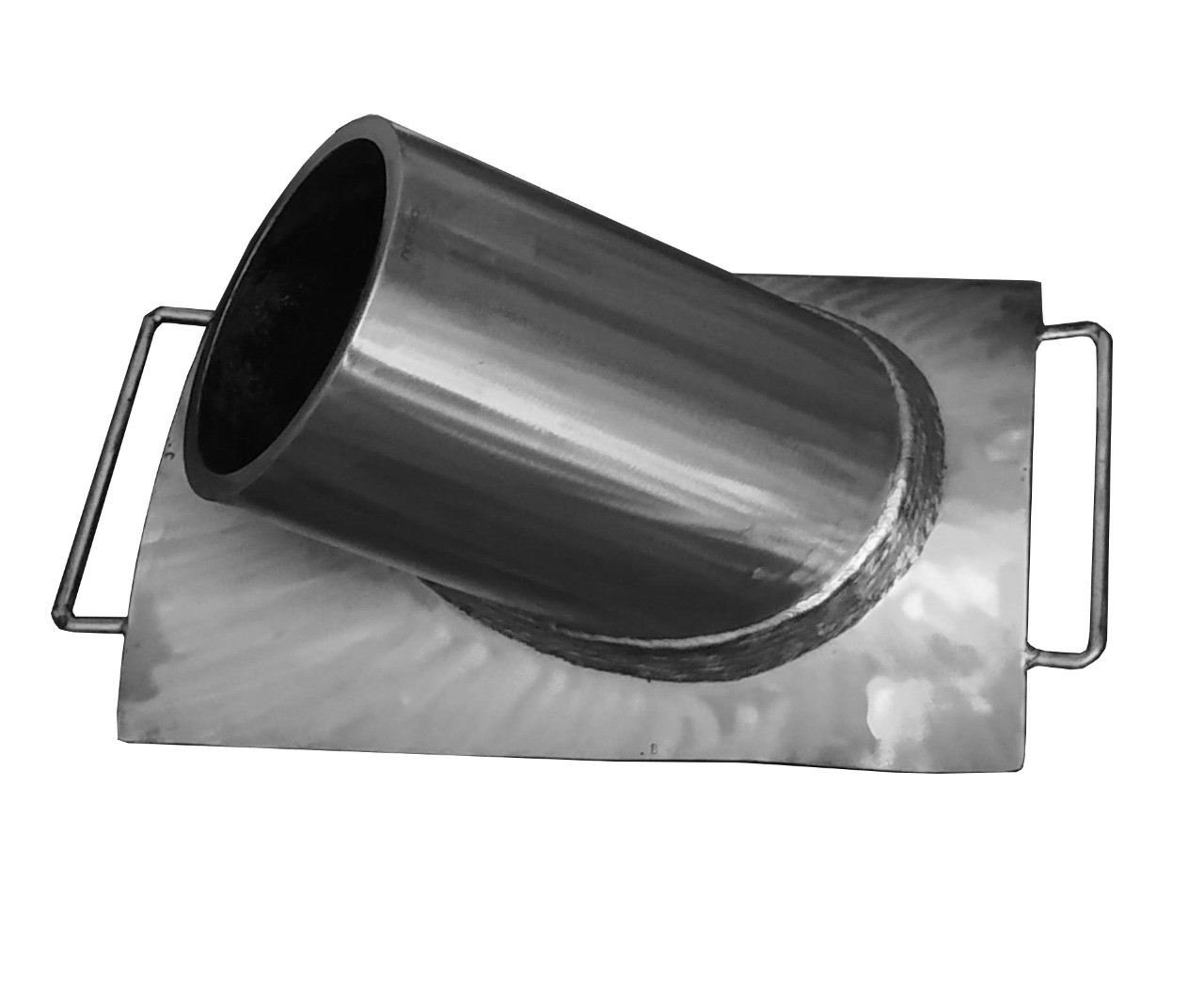

35ᵒ Tubular Nodes Weld UT Flaw Test Specimen (Inch Version)

35ᵒ Tubular Nodes Weld UT Flaw Test Specimen 0.5” to 0.8” (Ultrasonic Test)

Tubular Nodes 0.5” to 0.8” 35ᵒ UT Flawed Specimens

Geometry: Tubular Nodes Dihedral Angle 35ᵒ Main Pipe Segment Ø20” Dia. 0.8” to 1.0” WT & Branch Ø8” Dia. And 0.5” to 0.8” WT.

Material: Carbon Steel.

Customized Calibration Test Block and Flaw Specimen also available.

Flaws: 3 or 4 per specimen, randomly placed Specimen Tolerance: +/- 0.080".

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.
