Home » 20mm Magnetic Flux Leakage MFL Floor Inspection Reference Standard Metric Version

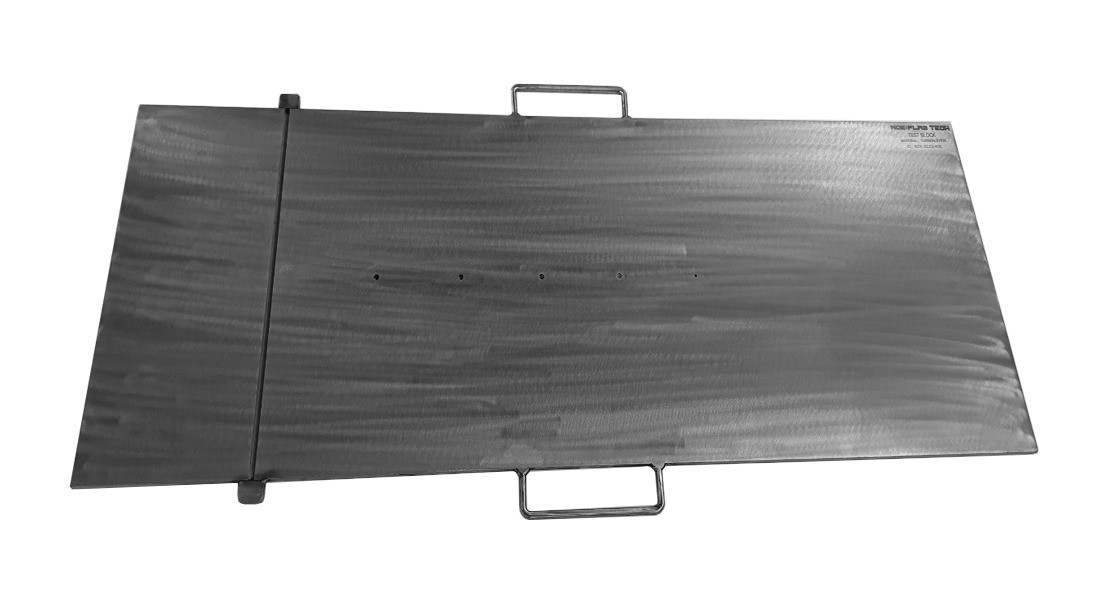

20mm Magnetic Flux Leakage MFL Floor Inspection Reference Standard (Metric Version)

Price: $1467.00

Part Number : NDE FLAW TECH-MFL PLATE-5126
Availability : Out of Stock

Description

20mm Magnetic Flux Leakage MFL Floor Inspection Reference Standard (Metric Version)

20mm Magnetic Flux Leakage MFL Floor Inspection Reference Standard

Round Bottom Hole Reference Plate with 4 RBH, RBH dia depth and location as per eddyfi recommendation

Geometry: length 1150mm X width 500mm X Thickness 20mm

Material: Mild Steel

Customized Calibration Test Block and Flaw Specimen also available.
